Letter A
Price range: $9.35 through $20.90 inc GST
- ✓Dispatch in 2 business days
- ✓Printed in Western Australia
- ✓Free shipping on orders over $100
- ✓Bulk & shipyard pricing – ask us
| Product CodeES0100 | IMPA Code33.4210 | ISSA Code47.542.10 |

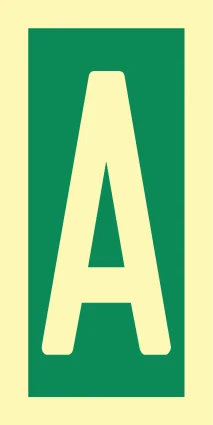

IMO Letter A identification sign for ships. Combine with a Deck, Stairway or Number tile to mark a specific location.
Other sizes on request. Film specifications on the Specifications tab.
| Product | |
| Product code | ES0100 |
|---|---|
| IMPA code | 33.4210 |
| ISSA code | 47.542.10 |
| Sizes | 150 × 75 mm · other sizes on request |
| Film options | |
| Self-Adhesive Vinyl (Non-Glow) | Polymeric PVC with UV laminate. No glow. Up to 5 yrs outdoor. |

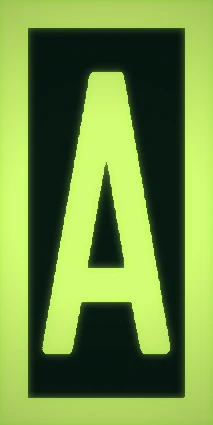

| General Purpose Glow Vinyl | 200 µm photoluminescent vinyl, approx. 8 hr afterglow. Not certified – not for marine or escape-route use. Up to 7 yrs outdoor. |
| Marine Glow Vinyl (Class C) | DNV MED Wheelmark, ISO 15370:2021. ≥140 / ≥20 mcd/m² at 10 / 60 min, 28+ hr afterglow. Flame-retardant. Up to 5 yrs outdoor. |
| Marine High Intensity Glow Vinyl (Class D) | DNV MED Wheelmark, ISO 15370:2021. ≥260 / ≥35 mcd/m² at 10 / 60 min, 50+ hr afterglow. Nearly 2× Class C – escape routes, LLL, low-light areas. Flame-retardant. Up to 5 yrs outdoor. |
| Substrates | |
| Self-adhesive | Peel-and-stick onto flat, clean, non-porous surfaces – bulkheads, doors, cabinets, painted steel. Default. |
| Rigid PVC | Light, economical panel for interior mounting. Screw or adhesive fix. |
| Polycarbonate | Impact-resistant, UV-stable – exterior and high-traffic locations. |
| Aluminium | Corrosion-resistant, long-life exterior and deck use. |
| Steel | Heavy-duty industrial mounting; magnet-compatible. |
Full film data sheets, certificates and care instructions on our Materials page.
IMO Letter A Sign – ES0100
This IMO Letter A sign is used as part of a ship’s number and letter identification system. Combined with a Deck or Stairway base sign, or fitted alongside a lifeboat, liferaft or muster station marker, it creates a unique reference such as “Deck A” or “Lifeboat Station A”, helping crew and passengers quickly identify a specific deck, stairway or muster point during drills and emergencies.
IMPA 33.4210
ISSA 47.542.10
ESS ES0100
- Fire-retardant marine-grade material
- Available in non-glow vinyl, general purpose glow, or DNV Wheelmark certified Class C / Class D photoluminescent film
- Waterproof and saltwater resistant
- Glossy wipe-clean finish
- Peel-and-stick installation, no tools or drilling
- Combine with a Deck, Stairway or Number tile to form a unique location identifier
Compliant with IMO Resolution A.1116(30) signage requirements.
See our full range of Escape Route Signs. Need a different size? Contact us for a quote.
