Sprinkler Section Valve Sign

Sprinkler Section Valve Sign – FS0123

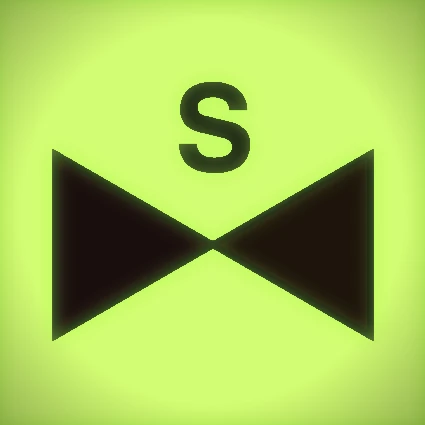

This sprinkler section valve sign shows the IMO fire control symbol marking a sectioning valve fitted into the vessel’s sprinkler system. The bowtie-style valve symbol follows the standard IMO fire control symbol convention used on fire control plans and at the valve itself, so it is recognisable to crew regardless of language.

Where this sprinkler section valve sign is used

A sprinkler section valve lets crew isolate one section of the sprinkler system from another, so a damaged, leaking, or already-discharged section can be shut off without losing water supply to the rest of the system. This sprinkler section valve sign marks exactly where each of these valves is located, so crew can find and operate the correct one quickly during an emergency.

This sign is fixed directly at or above the valve, typically in accommodation spaces, machinery spaces, and other points along the sprinkler system required by the vessel’s fire control plan, so the valve’s location is always obvious at a glance. If a fire triggers sprinklers in one section, closing the nearest section valve after the fire is contained keeps the rest of the system ready instead of leaving water running unnecessarily.

Every section valve on board should be marked the same way, so crew build a consistent expectation of what to look for regardless of which part of the vessel they are in. A valve that blends into its surroundings or is left unmarked is far slower to find under the pressure of an actual fire than one identified by this sign.

This sign is checked during SOLAS fire safety surveys, where the surveyor confirms that every sprinkler section valve is clearly marked, that the sign is visible and unobstructed, and that its position matches the vessel’s fire control plan. Correct labelling of every section valve is a standard item reviewed during these inspections, since a missing or obscured sign can slow down verification that the sprinkler system can be sectioned as designed.

New crew should be shown the location of section valves throughout the vessel during safety familiarisation and fire drills, since knowing which valve isolates which section without hesitation can materially affect how the sprinkler system is managed during and after a fire. Clear, consistent labelling like this sign removes that hesitation.

Consistent signage also matters during a routine walk-through inspection, since an unmarked or poorly identified section valve can slow down an auditor trying to confirm the vessel’s fire control plan matches what is actually fitted on board. Fitting this sprinkler section valve sign at every valve keeps the fire control plan easy to verify against the equipment in place.

Section valves should be tested regularly as part of the vessel’s routine fire safety equipment checks, since a valve that cannot be found quickly, or that has seized from lack of use, defeats the purpose of being able to isolate a damaged or discharged section. Keeping this sign in good condition also makes it easier for the crew member responsible for testing to confirm every section valve is accounted for.

Technical specifications:
SKU: FS0123
IMPA: 33.6819
ISSA: 47.568.19
Compliant: IMO Resolution A.1116(30)

• Fire-retardant marine-grade material
• Available in non-glow vinyl, general purpose glow, or DNV Wheelmark certified Class C / Class D photoluminescent film
• Waterproof and saltwater resistant
• Glossy wipe-clean finish
• Peel-and-stick installation, no tools or drilling

Supplied ready to apply directly at the valve. Available in the standard size shown above.

This sign is produced to IMO fire control symbol specifications for consistent recognition across international fleets. Need a different size or a custom layout? Contact us for a quote.
